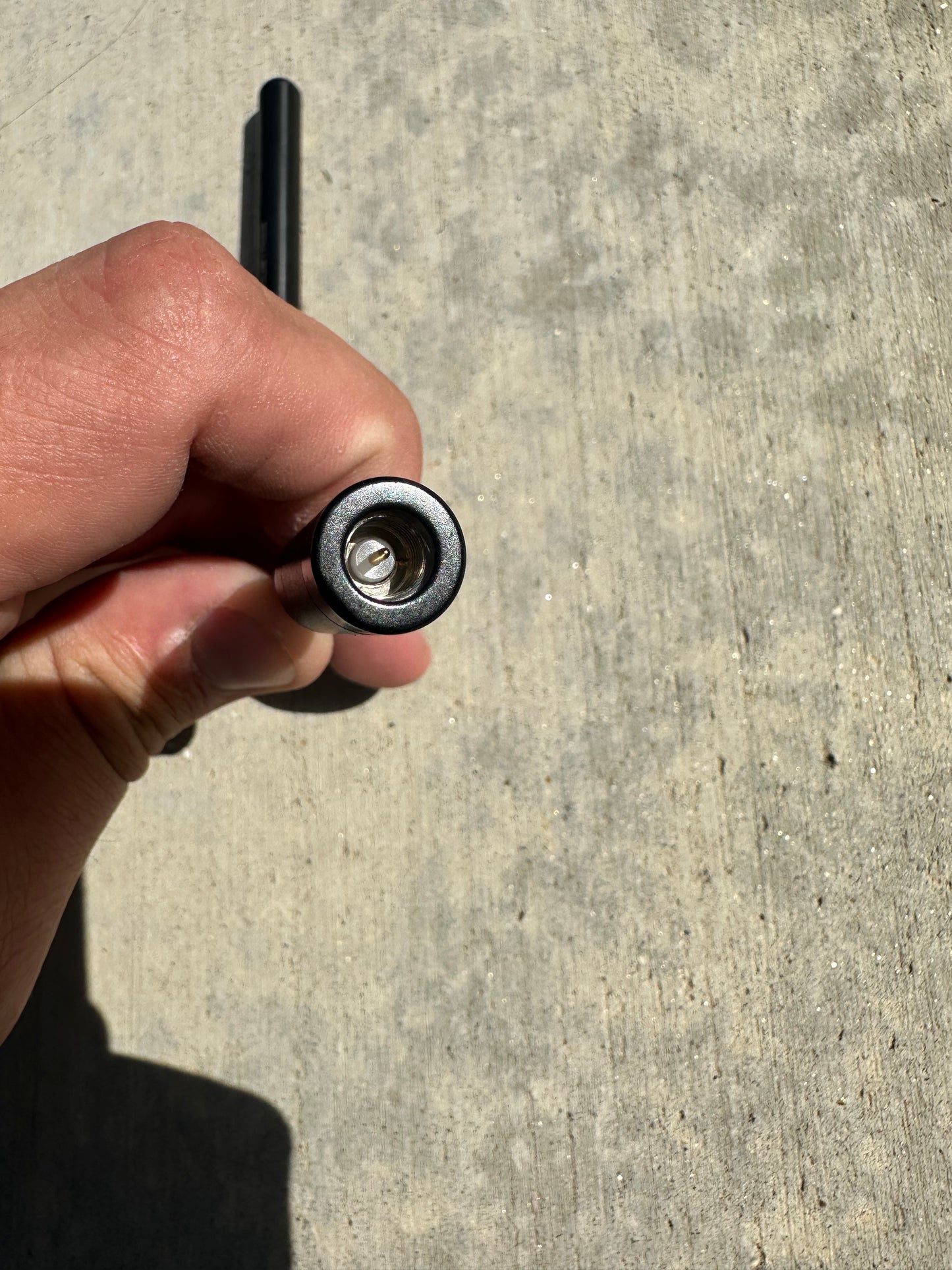

Mesh Goose Neck

*works for BearTooth, HaLow, Meshtastic, MeshCore, and RNodes*

Wide Band ISM Antenna

ISM- 902-928 MHz

Rugged Design

The Mesh Goose Neck antenna that is perfect for meshing around. Most users report significantly better communications on Meshcore and Mestastic. It has a base loaded coil that gives it low SWR across all the channels. The base coil is ground plane independent which allows the user to not affect the tune of the antenna no matter where its held or worn.

Technical

Gain: +~3.5 1/4 wave

Impedance: 50 Ohm

Electrical Efficiency: 95%~

Pattern: Omni Directional

Connector: SMA Male

RF Power Rating: 5W

Adapter Compatibility

Not NEEDED

FAQs

What radios are compatible with the Mesh Goose Neck?
Any radio with a SMA Female connector

Can this antenna be submerged?
No — Not recommended. It can get wet in rain, but it is not recommended to put it under water.

Will it work for Meshtastic?
Yes. Meshtastic, Meshcore, OpenManet projects and anything using teh 902-928 ISM band.

Is an adapter required?
No.

Gain:
1/4 wave 3.5dbi~

Max Wattage?
5 Watts

SMA Male Mesh Antenna. Tuned for 902-928 MHz. It has a base loaded coil and has about 3.7dbi of gain! Perfect for handheld mesh units!
