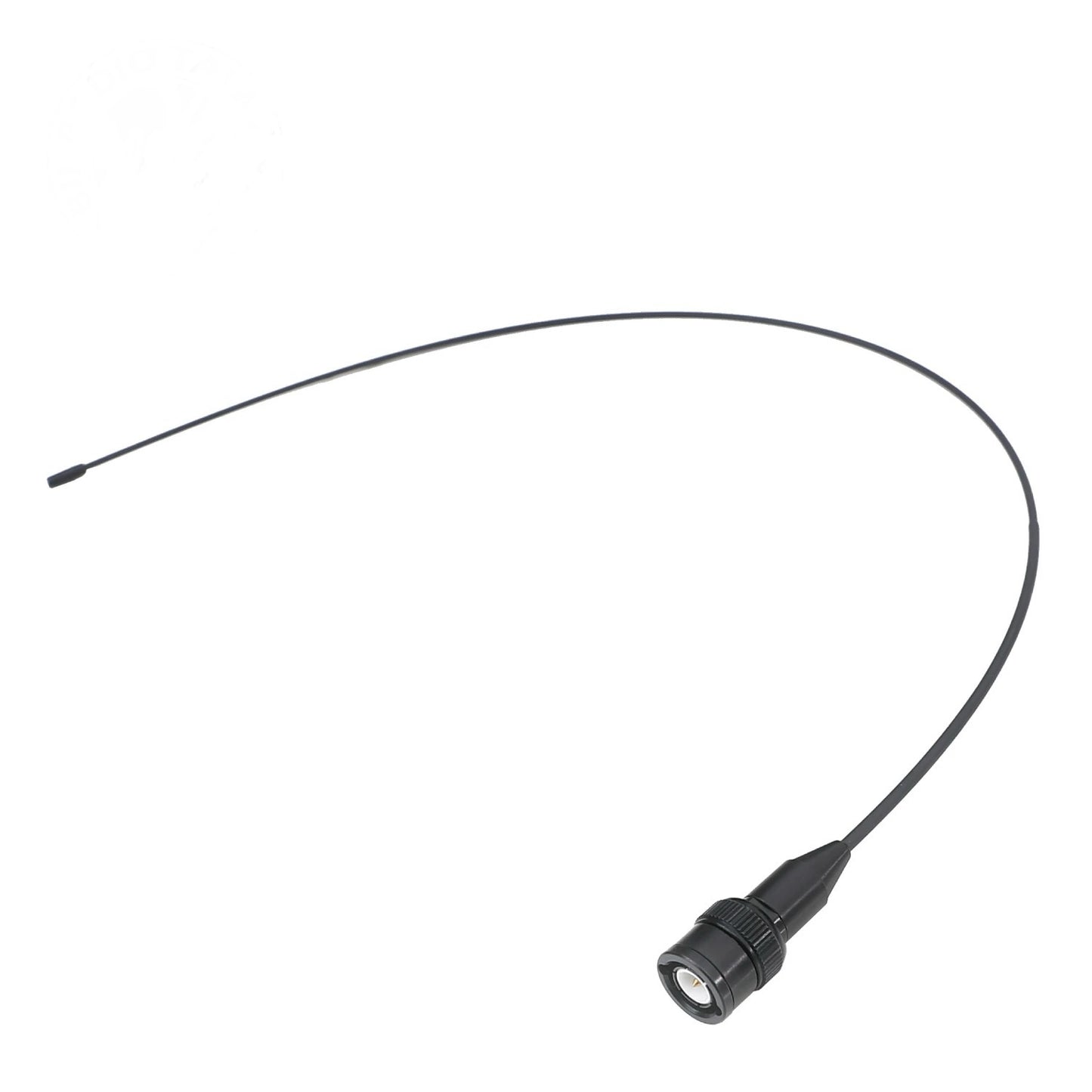

V2 Mesh Whip 915 MHz
V2 Mesh Whip 915 MHz
Free US shipping on orders $35+ · Ships in about 2 weeks · Hand-built in San Diego · 30-day returns & lifetime warranty
Couldn't load pickup availability
Need an adapter? Most handhelds do.
Look at your radio's antenna port: a pin means SMA Female, a hole means SMA Male.
*works for BearTooth, HaLow, Meshtastic, MeshCore, and RNodes*
Wide Band ISM Antenna
ISM- 902-928 MHz
Rugged Design
The Mesh V2 antenna that is perfect for meshing around. Most users report significantly better communications on Meshcore and Mestastic. It has a base loaded coil that gives it low SWR across all the channels. The base coil is ground plane independent which allows the user to not affect the tune of the antenna no matter where its held or worn.
Technical
Gain: +~6 5/8th wave
Impedance: 50 Ohm
Electrical Efficiency: 95%~
Pattern: Omni Directional
Connector: BNC Male
RF Power Rating: 5W
Adapter Compatibility
SMA M to BNC F
FAQs
What radios are compatible with the Mesh V2 Whip?
Any radio with a SMA Female connector when PAIRED with the SMA Male to BNC Female
Can this antenna be submerged?
No — Not recommended. It can get wet in rain, but it is not recommended to put it under water.
Will it work for Meshtastic?
Yes. Meshtastic, Meshcore, OpenManet projects and anything using teh 902-928 ISM band.
Is an adapter required?
Yes. SMA Male to BNC Female for 99% of Mesh Devices
Gain:
5/8 wave 6dbi~
Max Wattage?
5 Watts
